Find Redo Log Size / Switch Frequency / Location in Oracle

What is redo logs?

In Oracle, the term "redo log" refers to a critical component of the database system that helps ensure data durability and recoverability. The redo log consists of a set of files, known as redo log files or redo logs, which store a record of changes made to the database.

Whenever a transaction modifies data in the database, Oracle generates redo entries, also known as redo records, that capture the before and after images of the modified data. These redo records are written to the redo log files in a sequential manner. The redo log files provide a means to recover the database to a consistent state in the event of a system failure or a database crash.

Redo logs serve two primary purposes:

1. Recovery: The redo log files are crucial for database recovery operations. In case of a failure, Oracle can use the redo log files to reapply the changes made by committed transactions that were not yet written to the data files, thus ensuring data consistency and integrity.

2. Redo Generation: The redo log files also play a role in maintaining the durability of the database. As changes are made to the database, the redo log files capture these modifications, allowing Oracle to recreate or "redo" those changes if necessary.

In summary, the redo log in Oracle is a fundamental component that helps ensure data integrity and recoverability by storing a record of changes made to the database. It plays a crucial role in database recovery and provides durability by capturing redo entries for all modifications made to the database.

Find Redo Log Size

To find the size of the redo log in Oracle, you can query the database dictionary views. Specifically, you can retrieve the redo log size information from the `V$LOG` view. Here's an example query:

This query will return the group number (`GROUP#`), thread number (`THREAD#`), and size in bytes (`BYTES`) of each redo log group in the database.

Note that the `V$LOG` view provides information about individual redo log groups, and the size of the redo log is typically the sum of the sizes of all the groups. So, if you want to calculate the total size of the redo log, you can use the following query:

This query will give you the total size of the redo log in bytes. You can divide the result by an appropriate unit (e.g., 1024 for kilobytes, 1024*1024 for megabytes) to obtain the size in a more readable format.

Keep in mind that the size of the redo log can vary depending on the configuration and settings of your Oracle database.

Redo Log Switch Frequency

To determine the redo log switch frequency in Oracle, you can query the database dictionary views to gather information about the redo log switches. Redo log switches occur when a filled redo log file is switched with an empty one to ensure continuous logging of database changes. Here's an example query:

This query retrieves the count of redo log switches from the `V$LOG_HISTORY` view. The `V$LOG_HISTORY` view provides a historical record of redo log switches that have occurred in the database.

You can also calculate the redo log switch frequency over a specific period of time by considering the timestamps of the redo log switches. Here's an example query that calculates the average redo log switch frequency per day:

This query divides the count of redo log switches by the time difference between the earliest and latest redo log switch timestamps to obtain the average frequency per day.

Note that the `V$LOG_HISTORY` view retains historical information for a limited period, which is determined by the database configuration. Therefore, if you need to analyze redo log switch frequency over a longer duration, you might need to consider other methods, such as log file monitoring tools or auditing features provided by Oracle or third-party tools.

Redo Log Location in Oracle

In Oracle, the redo log files are typically stored in a specific directory known as the "log file directory" or "log file location." The exact location of the redo log files depends on the configuration of the database and the operating system.

To find the location of the redo log files, you can query the `V$LOGFILE` view, which provides information about the redo log file configuration. Here's an example query:

This query retrieves the file paths (`MEMBER`) of the redo log files in the database. The `V$LOGFILE` view contains information about the redo log file members, including their locations.

Each redo log file member has a specific path associated with it. The path can be an absolute file system path or a relative path within the database directory structure, depending on the configuration. By querying the `V$LOGFILE` view, you can obtain the exact location of each redo log file member.

Additionally, you can also check the Oracle initialization parameter file (usually called "init.ora" or "spfile.ora") to find the specific location of the redo log files. Look for the parameter `LOG_FILE_NAME_n`, where `n` represents the redo log group number. The parameter value will indicate the path and filename of each redo log file member.

Remember to adjust the query or examine the parameter values for all redo log groups in case there are multiple groups configured in your Oracle database.

Redo Log File Status Descriptions

UNUSED – Online redo log has never been written to. This is the state of a redo log that was just added, or just after a RESETLOGS, when it is not the current redo log.

CURRENT – Current redo log. This implies that the redo log is active. The redo log could be open or closed.

ACTIVE – Log is active but is not the current log. It is needed for crash recovery. It may be in use for block recovery. It may or may not be archived.

CLEARING – Log is being re-created as an empty log after an ALTER DATABASE CLEAR LOGFILE statement. After the log is cleared, the status changes to UNUSED.

CLEARING_CURRENT – Current log is being cleared of a closed thread. The log can stay in this status if there is some failure in the switch such as an I/O error writing the new log header.

INACTIVE – Log is no longer needed for instance recovery. It may be in use for media recovery. It might or might not be archived.

Mongodb architecture

MongoDB is a NoSQL document-oriented database that offers a flexible, scalable, and high-performance data storage solution. MongoDB's architecture is designed to handle large volumes of data, distributed deployments, and provide high availability. Let's explore the key components of MongoDB's architecture:

Document Model: MongoDB stores data in flexible, self-describing documents using BSON (Binary JSON) format. BSON documents are similar to JSON documents and can contain nested structures and arrays. Each document in MongoDB is identified by a unique "_id" field and can have varying sets of fields.
Collections: MongoDB organizes related documents into collections, which are analogous to tables in relational databases. Collections are schema-less, allowing documents within a collection to have different structures. Documents within a collection can be indexed for efficient querying.
Sharding: Sharding is a horizontal scaling technique in MongoDB that enables distributing data across multiple machines or shards. Each shard holds a subset of the data, and collectively they form a sharded cluster. Sharding allows MongoDB to handle large data volumes and accommodate high traffic loads.
Sharded Cluster Components:
- Shard: A shard is a single MongoDB server or replica set responsible for storing a portion of the data. Multiple shards work together to handle data distribution and parallel processing of queries.
- Config Servers: Config servers store the metadata about the sharded cluster, including the mapping of data chunks to shards. They provide the necessary information for query routing and ensuring data consistency.
- Query Routers: Query routers, also known as mongos, are responsible for receiving client requests and routing them to the appropriate shards based on the metadata from the config servers. They act as the entry point for client applications to interact with the sharded cluster.
Replication: MongoDB supports replica sets, which provide high availability and data redundancy. A replica set consists of multiple MongoDB servers, where one server acts as the primary and the others serve as secondary replicas. The primary replica accepts write operations, while the secondary replicas replicate the primary's data asynchronously. If the primary fails, one of the secondary replicas automatically gets elected as the new primary, ensuring continuous availability.
Indexing: MongoDB supports various types of indexes to improve query performance. Indexes can be created on individual fields, compound fields, text fields, geospatial data, and more. Indexes allow for efficient data retrieval by creating data structures that speed up the query process.
WiredTiger Storage Engine: MongoDB utilizes the WiredTiger storage engine as the default storage engine since version 3.2. WiredTiger offers advanced features like compression, document-level concurrency control, and efficient storage layouts. It helps in improving performance, scalability, and storage efficiency.
Aggregation Framework: MongoDB provides a powerful Aggregation Framework that allows for complex data processing and analysis. It supports various stages and operators to perform data transformations, filtering, grouping, and aggregations within the database.
Security: MongoDB offers authentication and authorization mechanisms to secure the database. It supports username/password authentication, certificate-based authentication, and integration with external authentication providers. Access control can be enforced at the database, collection, and document levels.

MongoDB's architecture provides flexibility, scalability, and high availability for managing modern data requirements. It enables efficient handling of large-scale distributed deployments, horizontal scalability through sharding, and redundancy through replica sets, making it suitable for a wide range of applications and use cases.

Potgresql High Availability & Replication

PostgreSQL provides several mechanisms for achieving high availability and replication to ensure data redundancy, fault tolerance, and continuous availability of the database. Let's discuss some of the key features and techniques used in PostgreSQL for high availability and replication:

Streaming Replication: PostgreSQL supports streaming replication, which is the foundation for high availability in a PostgreSQL cluster. In this setup, a primary server continuously streams its transaction logs, known as the Write-Ahead Log (WAL), to one or more standby servers. The standby servers apply the WAL records to maintain an up-to-date copy of the primary server's database.
Streaming replication can be configured in two modes:
- Asynchronous Replication: Standby servers asynchronously receive and apply the WAL records. Although it provides good availability and potential data protection, there may be a small delay between the primary and standby databases.
- Synchronous Replication: Standby servers synchronously confirm the receipt and application of the WAL records, ensuring that transactions are committed on the primary only after they are safely replicated to the standby servers. Synchronous replication provides stronger data consistency but may introduce additional latency.
Physical Replication: PostgreSQL's streaming replication operates at the physical level, replicating changes made to the database at the block level. This approach ensures that the entire database cluster is replicated, including all tables, indexes, and other objects.
Logical Replication: In addition to physical replication, PostgreSQL also supports logical replication, which replicates data at the logical level based on the changes made to individual tables or specific data sets. Logical replication offers more flexibility and granularity, allowing selective replication of tables and columns, as well as the ability to perform data transformations during replication.
Replication Slots: Replication slots are a feature in PostgreSQL that enables streaming replication. They act as a buffer for standby servers to ensure that the primary server retains enough WAL records to support the streaming replication. Replication slots automatically manage the retention of WAL segments and prevent them from being removed before the standby server has received and applied them.
Automatic Failover: To achieve high availability, PostgreSQL can be combined with external tools and frameworks that provide automatic failover capabilities. For example, tools like repmgr, Patroni, or Pgpool-II can monitor the health of the primary server and automatically promote a standby server to become the new primary in case of a failure. These tools can also handle the reconfiguration of clients to connect to the new primary server.
Cluster Load Balancing: PostgreSQL clusters can be load balanced using various techniques to distribute client connections across multiple servers. Load balancing helps in achieving scalability, better resource utilization, and improved fault tolerance. Tools like Pgpool-II and HAProxy are commonly used for load balancing PostgreSQL clusters.
Hot Standby: PostgreSQL allows read-only queries to be executed on standby servers while they are actively replicating data from the primary server. This feature, known as Hot Standby, enables better utilization of standby servers by offloading read traffic from the primary server, thereby improving overall performance.

By leveraging these features and techniques, PostgreSQL provides robust high availability and replication capabilities, ensuring data durability, fault tolerance, and continuous database availability for critical applications.

Postgres System Architecture

PostgreSQL, often referred to as Postgres, is an open-source relational database management system (RDBMS) known for its robustness, reliability, and extensive feature set. Let's explore the system architecture of PostgreSQL.

Client-Server Model: PostgreSQL follows a client-server model. Multiple clients can connect to a PostgreSQL server simultaneously and interact with the database. Clients communicate with the server using various protocols such as TCP/IP, Unix domain sockets, or shared memory.
Process Architecture: PostgreSQL utilizes a process-based architecture, where multiple processes collaborate to handle client requests and manage the database. The key processes in a typical PostgreSQL setup are:
- Postmaster: The postmaster process acts as the central coordinator and manages the startup and shutdown of other processes. It listens for client connections and forks new backend processes for handling client requests.
- Backend Processes: Backend processes are responsible for executing client queries, managing transactions, and performing various database operations. Each client connection is associated with a separate backend process, which handles the communication with the client and executes SQL statements on behalf of the client.
- Shared Memory and Background Processes: PostgreSQL employs shared memory to share data structures and caches among processes efficiently. Additionally, there are several background processes like autovacuum, background writer, and WAL writer that handle maintenance tasks, write-ahead logging, and other system operations.
Storage Architecture: PostgreSQL stores its data on disk using a combination of files organized into tablespaces. The main components of the storage architecture include:
- Relational Databases: A PostgreSQL installation can consist of multiple independent databases, each with its schema and data. Each database has its set of tables, views, indexes, and other database objects.
- Tables and Indexes: Data within a database is organized into tables, which consist of rows and columns. PostgreSQL supports various storage methods like heap tables, b-tree indexes, hash indexes, and more.
- Write-Ahead Logging (WAL): PostgreSQL uses a transaction log called the Write-Ahead Log to ensure durability and provide crash recovery. The WAL records changes made to the database before they are applied to the actual data files.
- Shared Buffers and Caches: PostgreSQL employs shared memory buffers to cache frequently accessed data pages, reducing disk I/O and improving performance. Caches include the shared buffer cache, the operating system cache, and various internal caches like the query plan cache.
Query Processing and Execution: When a client sends a query to the PostgreSQL server, the query goes through a series of steps:
- Parsing and Analysis: The server parses the query to understand its structure and performs semantic analysis to check for correctness, resolve object names, and validate access privileges.
- Query Optimization: PostgreSQL's query optimizer analyzes the query and generates an optimal query plan, determining the most efficient way to execute the query based on available indexes, statistics, and cost estimations.
- Query Execution: The chosen query plan is executed by the backend process. Data is retrieved from disk or memory, and any necessary locks or concurrency control mechanisms are applied. The execution engine processes the data and returns the result to the client.
Extensions and Plug-Ins: PostgreSQL provides a rich ecosystem of extensions and plug-ins that enhance its functionality. Extensions can introduce new data types, operators, indexing methods, procedural languages, and more. They integrate seamlessly into the PostgreSQL architecture and can be loaded and used on-demand.

Overall, PostgreSQL's system architecture is designed to provide reliability, performance, and extensibility while maintaining data integrity and offering a comprehensive set of features for building robust database applications.

PostgreSQL Backup

In PostgreSQL, there are multiple methods available for performing backups. Here are some commonly used backup methods:

pg_dump: The pg_dump utility is a command-line tool that creates logical backups of PostgreSQL databases. It generates a SQL script that contains the database schema and data. To perform a backup, you can use the following command:



pg_dump -U <username> -d <database_name> -f <backup_file.sql>

This command will create a backup of the specified database and store it in the specified file.

pg_dumpall: The pg_dumpall utility is similar to pg_dump but creates a backup of all databases in the PostgreSQL cluster, including global objects and roles. It can be used to perform a full system backup. The command to use is:

pg_dumpall -U <username> -f <backup_file.sql>

This command will create a backup of the entire PostgreSQL cluster and store it in the specified file.

pg_basebackup: The pg_basebackup utility is used to create a physical backup of the entire PostgreSQL cluster. It takes a base backup of the data directory and allows for incremental backups using the Write Ahead Log (WAL) files. The command to use is:

    pg_basebackup -U <username> -D <backup_directory> -Ft -Xs -P

    This command will create a physical backup of the PostgreSQL cluster in the specified directory.

    Continuous Archiving (WAL): Continuous archiving with Write Ahead Log (WAL) files provides a method for creating incremental backups. It involves configuring PostgreSQL to archive the WAL files and then periodically copying them to a backup location. This method allows for point-in-time recovery and is often used in combination with other backup methods.

It's important to note that backups should be stored in a secure and separate location from the production database. Additionally, it's recommended to test the backup and restore procedures regularly to ensure their effectiveness.

Apart from these native backup methods, there are also third-party tools and solutions available that provide additional features and flexibility for PostgreSQL backups.

Oracle 19c new features

Oracle 19c, released in 2019, introduced several new features and enhancements across various areas of the database. Here are some notable features introduced in Oracle 19c:

Automatic Indexing: Oracle 19c introduced the Automatic Indexing feature, which uses machine learning algorithms to identify and create indexes on tables automatically. This feature can improve query performance by automatically creating and maintaining indexes based on usage patterns.
Real-Time Statistics: Oracle 19c enhanced the statistics gathering process by introducing real-time statistics. Instead of relying solely on scheduled statistics collection jobs, real-time statistics allow the optimizer to use more accurate and up-to-date statistics during query optimization, resulting in better query plans.
Hybrid Partitioned Tables: With Oracle 19c, you can create hybrid partitioned tables that combine the benefits of both partitioning and non-partitioned tables. This allows for more flexible data management and improved performance for specific use cases.
Multitenant Database Improvements: Oracle Multitenant, introduced in earlier versions, received several enhancements in 19c. These include increased capacity limits for pluggable databases (PDBs), improved cross-container operations, and simplified management operations for PDBs.
Automatic Data Optimization: Oracle 19c introduced Automatic Data Optimization (ADO), which allows for the automatic compression and movement of data between different storage tiers based on usage patterns and policies. ADO enables cost-effective data lifecycle management and improves storage efficiency.
Real Application Clusters (RAC) Improvements: Oracle 19c brought enhancements to Real Application Clusters (RAC), including better workload management and performance with the introduction of application continuity and the capability to prioritize resource allocation for specific workloads.
Database In-Memory Improvements: The In-Memory column store feature, introduced in earlier versions, received performance and usability enhancements in Oracle 19c. This includes improved in-memory join performance, support for larger In-Memory column stores, and the ability to dynamically track usage statistics for In-Memory objects.
Security Enhancements: Oracle 19c introduced several security enhancements, such as the ability to manage user privileges through a role commonality feature, support for password-less authentication using external services, and enhancements to Oracle Data Redaction for sensitive data protection.

These are just a few of the key features and enhancements introduced in Oracle 19c. Oracle regularly releases updates and patches, so it's always recommended to consult the official Oracle documentation and release notes for the most up-to-date information on features and enhancements in a specific version.

MySQL Architecture

The architecture of a MySQL database involves several key components that work together to store, manage, and access data. Here is an overview of the MySQL database architecture:

Client: The client is an application or program that connects to the MySQL server to interact with the database. It can be a command-line tool, a graphical user interface (GUI), or a web application.
MySQL Server: The MySQL server is the core component of the database system. It receives and processes client requests, manages database connections, and executes SQL queries. It consists of several subcomponents:
a. Connection Handler: The connection handler manages incoming client connections, authenticates users, and establishes communication channels between the server and the client.
b. Query Parser: The query parser parses SQL statements received from clients and transforms them into an internal representation for query execution.
c. Optimizer: The optimizer analyzes query execution plans and determines the most efficient way to execute SQL queries based on indexes, statistics, and other factors.
d. Query Executor: The query executor executes the SQL queries, retrieves data from the storage engine, performs data manipulation, and returns results to the client.
Storage Engines: MySQL supports multiple storage engines that determine how data is stored and accessed. Each storage engine has its own characteristics, features, and performance considerations. Common storage engines include InnoDB, MyISAM, MEMORY (HEAP), and more.
Data Dictionary: The data dictionary stores metadata about database objects, such as tables, columns, indexes, and privileges. It provides information about the structure and organization of the database and is used by the server to process queries and enforce data integrity.
Caches and Buffers: MySQL utilizes various caches and buffers to improve performance:
a. Query Cache: The query cache stores the results of SELECT queries, allowing subsequent identical queries to be served directly from the cache, reducing the need for query execution.
b. Buffer Pool: The buffer pool is an area of memory used by the InnoDB storage engine to cache frequently accessed data pages, reducing disk I/O and improving query performance.
c. Key Buffer: The key buffer (also known as the key cache) is used by the MyISAM storage engine to cache index blocks, speeding up index lookups.
Disk Storage: MySQL databases are typically stored on disk as data files. The data files contain table data, indexes, and other database objects. Each storage engine has its own file format and organization.

The architecture of a MySQL database is designed to provide efficient data storage, query execution, and management of client connections. Understanding the components and their interactions is essential for optimizing performance, ensuring data integrity, and scaling the database system to handle increased workloads.

PostgreSQL Vacuum

In PostgreSQL, VACUUM is a crucial process used for managing and reclaiming disk space occupied by deleted or outdated data within database tables. The VACUUM process performs the following tasks:

Freeing Up Space: When rows are deleted or updated in PostgreSQL, the space occupied by the old versions of the rows is not immediately reclaimed. Instead, they are marked as "dead" tuples and remain in the table until a VACUUM process is executed. VACUUM identifies these dead tuples and frees up the occupied space, making it available for future use.
Preventing Transaction ID Wraparound: PostgreSQL uses transaction IDs (XIDs) to track the visibility and validity of tuples. If the number of transactions exceeds the capacity of the XID counter, a transaction ID wraparound can occur, leading to data corruption. Regularly running VACUUM helps prevent this by recycling old transaction IDs.
Updating Statistics: VACUUM analyzes and updates the statistics of tables, which is vital for the query planner to make efficient decisions when generating query plans. Accurate statistics help in determining the optimal execution plans and improving query performance.
Maintaining Data Consistency: VACUUM ensures that the database remains in a consistent state by reclaiming space, updating transaction information, and preventing transaction ID wraparound. It helps maintain the integrity and reliability of the database.

There are different variants of the VACUUM command in PostgreSQL, each serving a specific purpose:

VACUUM: The basic VACUUM command without any additional options performs the standard VACUUM operation. It reclaims space and updates statistics for all tables in the current database.
VACUUM ANALYZE: This variant of VACUUM performs both the standard VACUUM and analyzes the table to update statistics. It is commonly used when you want to optimize the table for query performance.
VACUUM FULL: VACUUM FULL is an intensive variant of the VACUUM command that reclaims all unused space in the table, not just the space occupied by dead tuples. It requires exclusive lock on the table and can be resource-intensive.
Autovacuum: PostgreSQL has an autovacuum feature that automatically performs VACUUM and analyzes operations in the background based on the configuration settings. Autovacuum helps ensure that VACUUM is regularly executed without manual intervention.

Regularly running VACUUM, either manually or through autovacuum, is essential to maintain optimal performance and disk space utilization in PostgreSQL databases. It helps prevent bloat, ensures data integrity, and provides accurate statistics for query optimization.

MySQL Storage Engines

MySQL provides various storage engines that offer different features and capabilities to meet specific application requirements. Each storage engine has its own way of storing and accessing data. Here are some commonly used storage engines in MySQL:

InnoDB: InnoDB is the default storage engine in MySQL since version 5.5. It provides ACID-compliant transactions, row-level locking, foreign key constraints, and crash recovery. InnoDB supports the concept of clustered indexes and provides excellent concurrency control, making it suitable for general-purpose applications.
MyISAM: MyISAM is a storage engine known for its simplicity and high performance. It offers table-level locking, which can be less efficient for concurrent write operations but allows for faster read operations. MyISAM doesn't support transactions or foreign key constraints but is often used for read-heavy applications or non-transactional data.
Memory (HEAP): The Memory storage engine stores data in memory rather than on disk. It is fast and suitable for temporary data or caching purposes. However, data stored in the Memory engine is volatile and gets lost on server restart.
Archive: The Archive storage engine is designed for storing large amounts of data efficiently. It compresses data and supports sequential access, making it suitable for data archiving or logging purposes. Archive tables do not support indexing and perform best with append-only operations.
NDB (MySQL Cluster): The NDB storage engine, also known as MySQL Cluster, is designed for high availability and scalability. It uses distributed, in-memory storage across multiple nodes and supports automatic data partitioning and replication. NDB is well-suited for applications that require real-time access and high availability, such as web applications or telecom systems.
CSV: The CSV storage engine stores data in comma-separated values format. It allows importing and exporting data in CSV format and is useful for simple data storage or data interchange between different systems.
InnoDB Cluster (Group Replication): InnoDB Cluster, also known as Group Replication, is a multi-master, highly available, and scalable solution provided by MySQL. It combines InnoDB storage engine with a group replication plugin to enable synchronous replication and automatic failover.

Note that the availability of specific storage engines may vary depending on the MySQL version and configuration. It's important to consider the specific needs of your application, such as performance, transaction support, and high availability, when choosing the appropriate storage engine for your MySQL database.

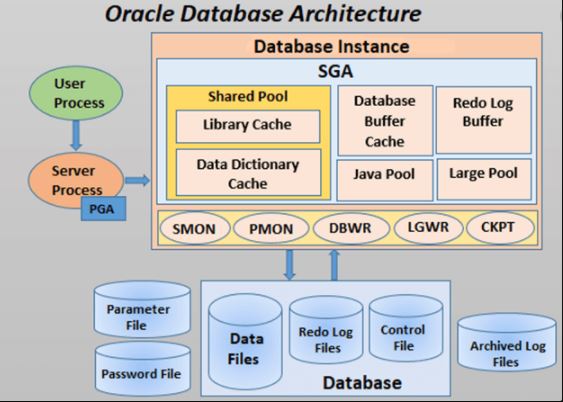

Oracle Memory architecture

Oracle database uses several memory structures to manage and optimize database operations. These memory structures are collectively referred to as the System Global Area (SGA) and the Program Global Area (PGA). Here are the main memory structures in Oracle:

System Global Area (SGA):

Database Buffer Cache: The buffer cache holds copies of data blocks read from data files. It reduces disk I/O by caching frequently accessed data in memory, improving query performance.
Redo Log Buffer: The redo log buffer stores changes made to the database before they are written to the redo log files. It ensures that all changes are recorded for recovery and provides high-performance transaction logging.
Shared Pool: The shared pool consists of the Library Cache and the Data Dictionary Cache. The Library Cache stores SQL statements, execution plans, and other shared SQL and PL/SQL code. The Data Dictionary Cache stores information about database objects, user privileges, and other metadata.
Large Pool: The large pool is an optional memory area used for large-scale allocations and I/O buffers for backup and restore operations, parallel execution, and session memory.
Java Pool: The Java pool stores Java objects and bytecode for Java stored procedures and other Java-related operations.
Streams Pool: The Streams pool is used by Oracle Streams, a feature for data replication and messaging. It stores buffered messages and other Streams-related data.

Program Global Area (PGA):

Stack Space: The stack space is allocated for each session or process in the database. It contains session-specific data, including variables, parameters, and cursor state information.
Private SQL Area: The private SQL area stores information specific to each SQL statement being executed, such as bind variables, query execution plans, and runtime buffers.
Sorting Area: The sorting area is used for sorting operations, such as ORDER BY and GROUP BY clauses. It stores temporary data during sorting operations.
Session Memory: Session memory includes various session-specific memory structures, such as session parameters, session cursors, and session-specific work areas.

These memory structures collectively manage and optimize the database's performance and resource utilization. The sizes of these memory areas can be configured and tuned based on the system's requirements and workload characteristics to ensure optimal performance and efficient memory usage in the Oracle database.

Oracle Undo Tablespace

In Oracle, the undo tablespace is a crucial component of the database that is used to manage and store undo information. Undo data represents the changes made to the database, such as modifications or deletions, that are necessary to roll back transactions or provide read consistency.

Here are some key points about the undo tablespace in Oracle:

Purpose of Undo Tablespace: The undo tablespace is primarily used to provide transactional consistency and support various Oracle features like read consistency, flashback queries, and transaction rollback. It stores the before-images of the data blocks affected by transactions.
Rollback Segments vs. Undo Tablespaces: In earlier versions of Oracle, rollback segments were used to manage undo data. However, starting with Oracle 9i, the undo tablespace was introduced as a more efficient and flexible alternative to manage undo information.
Automatic Undo Management: Oracle introduced the concept of Automatic Undo Management (AUM) to simplify the administration of undo tablespaces. With AUM, the DBA does not need to manually manage rollback segments; instead, Oracle automatically manages the undo space allocation and retention.
Undo Retention: Undo retention refers to the period for which undo data is retained in the undo tablespace. It determines the availability of consistent read data for queries and provides the timeframe during which a transaction can be rolled back. The undo retention is controlled by the UNDO_RETENTION parameter.
Undo Tablespace Size: The size of the undo tablespace depends on the workload and the retention requirements of the system. The DBA needs to monitor the size of the undo tablespace and adjust it accordingly to prevent issues like ORA-01555 (snapshot too old) or ORA-30036 (unable to extend segment).
Multiple Undo Tablespaces: Starting with Oracle 11g, multiple undo tablespaces can be created to provide better manageability, performance, and availability. Multiple undo tablespaces can be used for different purposes or to separate undo segments for specific applications or tablespaces.
Flashback Features: The undo tablespace plays a crucial role in providing flashback features such as Flashback Query, Flashback Transaction, and Flashback Table. These features utilize the undo information to view past data or undo specific transactions.

The undo tablespace is an essential component in Oracle databases, responsible for maintaining the integrity, consistency, and concurrency of transactions. It enables features like read consistency, transaction rollback, and flashback queries, providing a reliable and efficient environment for data management and recovery.

Physical Standby Protection mode

Types of protection mode in Oracle physical standby

Oracle Data Guard provides different protection modes that determine the level of data protection and availability provided by the standby database. The protection mode defines how transactions are committed and synchronized between the primary and standby databases. The three primary protection modes in Oracle Data Guard are:

Maximum Performance (ASYNC): In Maximum Performance mode, the primary database commits transactions as soon as possible without waiting for the standby database to acknowledge the redo data. This mode offers the highest level of performance for the primary database but provides the least level of data protection. There is a potential for data loss if a primary database failure occurs before the redo data is transmitted to the standby database.
Maximum Availability (SYNC): In Maximum Availability mode, the primary database waits for at least one standby database to acknowledge the redo data before committing the transaction. This ensures that data is protected from the loss of a single database in the event of a failure. However, it may introduce some additional latency and potentially impact the primary database performance due to the synchronous network round-trip.
Maximum Protection (SYNC): In Maximum Protection mode, the primary database waits for all standby databases to acknowledge the redo data before committing the transaction. This provides the highest level of data protection but can introduce additional latency and impact the primary database performance due to the synchronous network round-trip. It ensures zero data loss in case of a single or multiple standby database failures.

In addition to these primary protection modes, Oracle Data Guard also provides a few other advanced protection modes that offer more granular control over data protection. These advanced modes include:

Far Sync Instance: A Far Sync Instance is an intermediary instance that acts as a buffer between the primary database and remote standby databases. It provides zero data loss protection in cases where the primary and standby databases are geographically distant.
Fast-Start Failover (FSFO): Fast-Start Failover is a feature that enables automatic failover to a standby database in case of a primary database failure. It reduces downtime and minimizes the impact on the application.
Cascading Standby Databases: Cascading standby databases allow the creation of multiple levels of standby databases. Redo data is cascaded from the primary database to a remote standby database, and then from that standby database to another standby database. This can be used to protect against disasters that affect an entire data center or region.

Each protection mode has its own trade-offs in terms of performance, data protection, and availability. It is important to carefully evaluate the requirements and constraints of the environment to choose the appropriate protection mode that aligns with the organization's objectives and data protection needs.

Oracle Physical Standby

In Oracle, a physical standby database is a type of standby database that maintains an exact copy of the primary database by continuously applying redo data from the primary database. It serves as a failover solution and provides high availability and data protection.

Here are key points to understand about a physical standby database in Oracle:

Data Synchronization: The physical standby database stays synchronized with the primary database by receiving and applying redo data, which contains all the changes made to the primary database. Redo data is shipped from the primary database and applied to the physical standby database using redo apply technology.
Data Protection: The physical standby database provides data protection by maintaining a synchronized copy of the primary database. In the event of a primary database failure, the physical standby database can be quickly activated to take over as the new primary database, minimizing downtime and data loss.
Continuous Redo Apply: The physical standby database continuously applies redo data received from the primary database, keeping the standby database up-to-date. Redo apply applies the changes to the standby database's data files, ensuring they mirror the primary database's data.
Read-Only Access: In addition to serving as a failover solution, the physical standby database can also be used for read-only reporting or offloading backup activities. This is possible because the standby database is an exact replica of the primary database.
Managed Recovery Process (MRP): The Managed Recovery Process (MRP) is the background process responsible for applying redo data to the physical standby database. It continuously runs on the standby database and applies redo data as it is received, keeping the standby database synchronized.
Data Guard: Oracle Data Guard is the primary technology used to configure and manage physical standby databases. It provides various features and options to ensure data synchronization, automatic failover, and management of the standby database.
Switchover and Failover: Switchover is the planned transition from the primary database to the standby database, where roles are reversed. Failover is the unplanned transition that occurs when the primary database becomes unavailable, and the standby database takes over as the new primary database.

By implementing a physical standby database, organizations can achieve high availability and data protection, ensuring that their critical Oracle databases remain accessible and their data remains safe in the event of primary database failures.

Oracle RAC SCAN

Oracle RAC SCAN, which stands for Single Client Access Name, is a feature in Oracle Real Application Clusters (RAC) that provides a single virtual hostname for client connections to the cluster database. The SCAN simplifies client connectivity and load balancing by abstracting the underlying cluster configuration and presenting a unified endpoint.

Here are key points to understand about Oracle RAC SCAN:

Simplified Client Connectivity: Instead of connecting to individual node names or VIP (Virtual IP) addresses, clients connect to the SCAN. The SCAN acts as a single virtual hostname that remains constant regardless of the cluster size or configuration changes.
SCAN VIP: The SCAN is associated with three SCAN VIPs (Virtual IP addresses). These VIPs are assigned to network interfaces on different nodes within the cluster. Each node in the cluster listens on all three VIPs, allowing clients to connect to any SCAN VIP.
SCAN Listener: The SCAN Listener is a single listener process that runs on each node in the cluster. It listens on the SCAN VIPs and handles incoming client connection requests. The SCAN Listener redirects client connections to the appropriate node and instance within the cluster.
Load Balancing: The SCAN Listener performs load balancing by distributing client connections across the available nodes and instances in the RAC cluster. It uses a load-balancing algorithm to evenly distribute client requests and optimize resource utilization.
High Availability: The SCAN provides high availability for client connections. If a node or SCAN VIP fails, the SCAN VIP is automatically relocated to another node, ensuring uninterrupted client connectivity. Clients do not need to update their connection details in case of node failures.
Transparent Node Addition/Removal: Adding or removing nodes from the RAC cluster does not impact client connectivity. Clients continue to connect to the SCAN, and the SCAN Listener dynamically adjusts the routing of connections to reflect the updated cluster configuration.
SCAN Configuration: The SCAN is configured during the installation or configuration of Oracle RAC. It requires a SCAN hostname and a corresponding DNS entry pointing to the SCAN VIPs. Clients use the SCAN hostname to connect to the cluster database.

By utilizing the Oracle RAC SCAN feature, clients can connect to the cluster database without needing to be aware of the underlying cluster configuration. The SCAN provides a unified and load-balanced entry point, enhancing scalability, availability, and ease of client connectivity in Oracle RAC environments.
